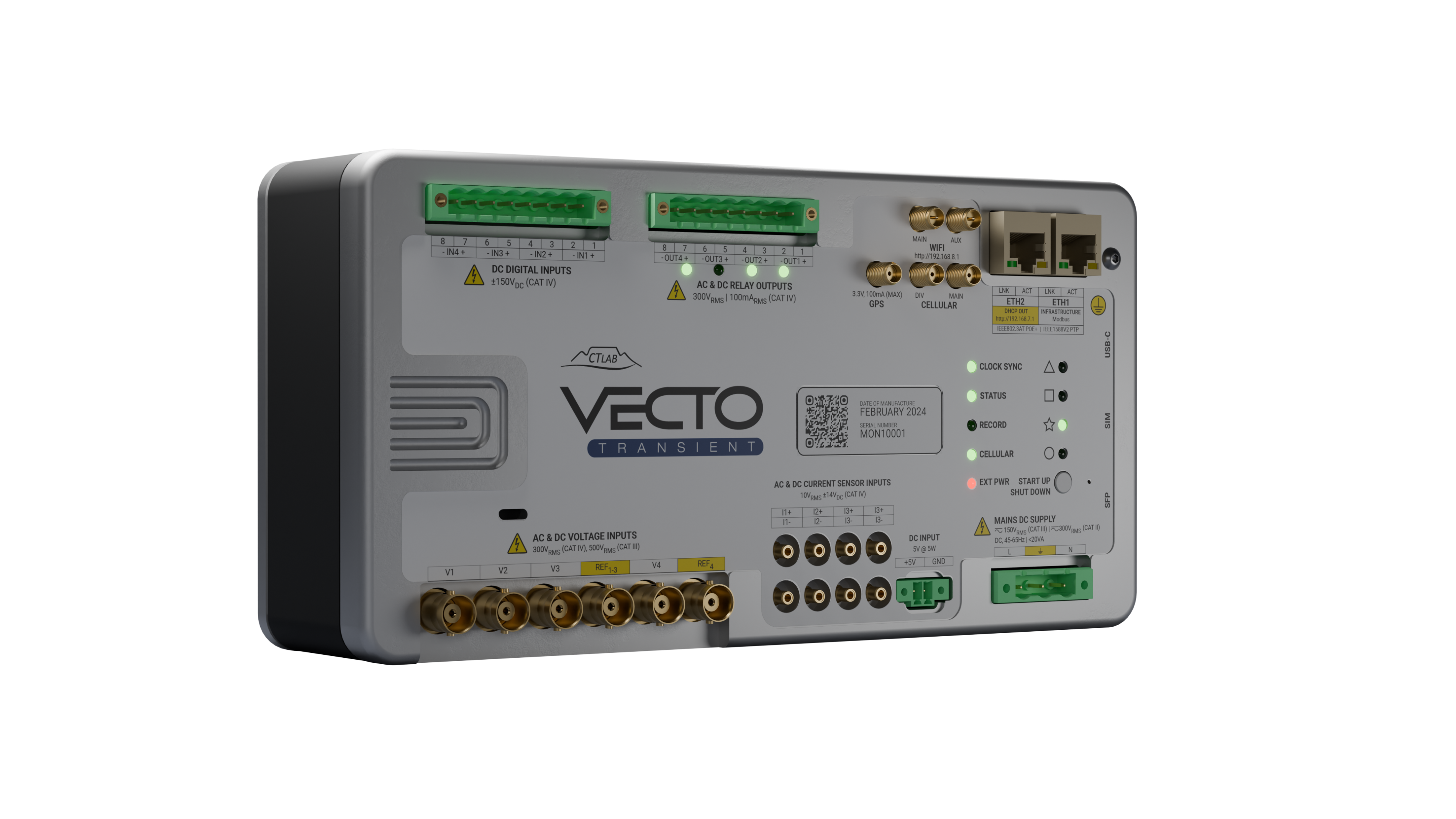

The 5.0MHz sampling VECTO TRANSIENT is a multifunction, waveform synchronised, Ed3.0 Class-A power quality based transient recording device, with the ability to store full resolution raw waveforms. A number of triggering conditions can be used to capture events with full 5 MHz diagnostic waveforms, including absolute value exceedance and rate of change exceedances.
The device is permanently GPS or PTP time synchronised to within <100ns from absolute time, and offers high accuracy and high-bandwidth analog inputs with selectable input range. It offers secure Gigabit bandwidth IP integration via Ethernet, Fiber, WiFi and 4G Cellular interfaces. The devices are powered from either AC, DC or POE-Plus sources and offers built-in battery support. VECTO devices can operate stand-alone or as part of a fleet of permanently connected devices managed by VECTO Grid OS, the big data hosting, visualisation, analysis & reporting software platform. Various add-on software modules are available.
- Power Quality Instrument: IEC62586-1 – PQI-A-FI1-H
- Power Quality: IEC6100-4-30 ED 3.0 Class-A
- Harmonics: IEC61000-4-7 Class 1
- Flicker: IEC61000-4-15 Class F1
- PMU: IEEE C37-118 Class P&M
- Billing: IEC62053-22 Class 0.2S
VECTO Transient User Manual
VECTO Transient Datasheet
The device comes equipped with an ethernet cable, flash drive, screwdriver and connector blocks.
- 5.0MHz sampling rate
- 1.5MHz analog bandwidth
- Raw 5.0MHz synchronous waveform storage – with pre- and post-waveforms
- Screened voltage and current sensor inputs
- 128GB M.2 SSD storage
- GPS synchronised to within ±100ns from absolute time
- Built-In 4G cellular modem with MIMO antennae
- Built-In HMI
- VECTO Grid OS support
- SFP-based gigabit fibre support
- 4 x Screened broadband voltage inputs with selectable input range
- 4 x Screened broadband current sensor inputs with selectable input range
- 1 x Current sensor power supply output (5V)
- 4 x Analog/logic event inputs
- 4 x Solid-state relay outputs with LED indicators

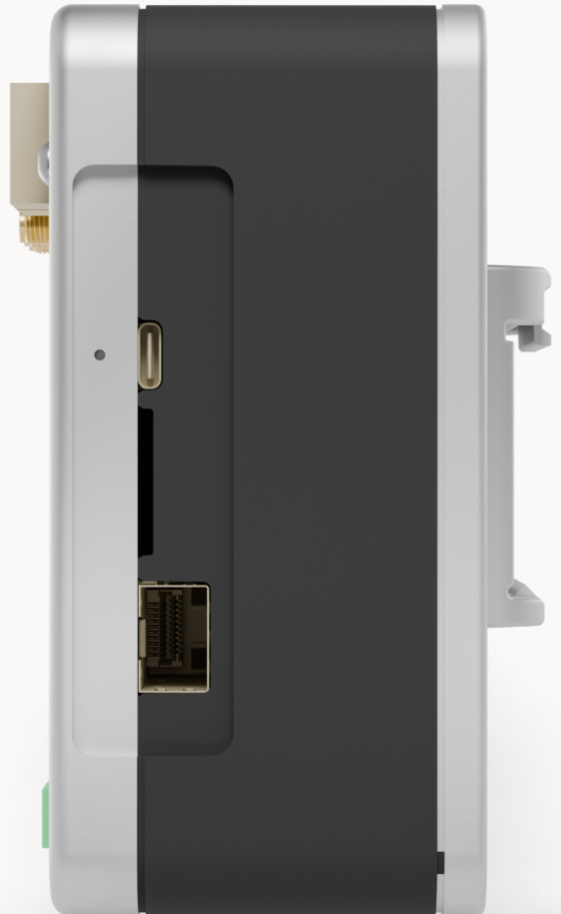

- Communications functionality
- 2 x Gigabit Ethernet ports with PoE & PTP support
- 1 x 1000BASE-X SFP cage
- 1 x MIMO WiFi antenna port
- 1 x MIMO cellular antenna port
- 1 x SIM slot
- 1 x Active GPS antenna port
- 1 x USB-C expansion port (lockable)
- 13 x Status LEDs
- 1 x Universal AC/DC power supply input
- 1 x Power on/off push button
- 1 x Safety earth connection point
- 1 x Kensington Security Slot
- Power Quality Instrument (PQI): IEC61000-4-30 ED3.0 Class-A
- Phasor Measurement Unit (PMU): IEEE C37-118
- oPMU: Oscillation phasor measurement
- Automation protocols supported
- Modbus
- Distributed Network Protocol 3 (DNP3)
- IEC61850
- IEEE C37-118 – Simultaneous Class M & Class P (PMU Streaming)
- Billing features
- Imported
- Exported
- Net
- Month to date Modbus register
- Previous month Modbus register
Voltage InputCurrent InputTime StampingAnalog/Logic InputsRelay OutputAccuracy & BandwidthPhysicalCommunicationPower
| Voltage Inputs |
|
| Number of Channels |
4 x screened voltage inputs |
| Measurement Range |
500 VLN, 866 VLL, ±707 VDC |
| Selectable Input Range |
500 V, 250 V, 125 V, 62.5 V, 31.25 V |
| Voltage measurement |
DC, Single Phase, 3-Phase (Star, Delta) |
| Input impedance/channel |
> 1 MΩ |
| Current Inputs |
|
| Number of Channels |
4 x screened low voltage inputs |
| Measurement Input Range |
10 ARMS, ±14.4 VDC |
| Selectable Input Range |
2.5 V, 1.25 V, 625 mV, 313 mV |
| Impedence/channel |
>1MΩ |
| Time Stamping |
|
| Onboard precision time source |
Battery-backed industrial GPS (3.3V powered active external antenna) |
| Onboard fall-back time source |
Battery-backed real time clock |
| Onboard RTC drift |
10ppm (320 seconds per annum) |
| External sources |
NTP, PTP (IEEE1588-V2) |
| Overall time accuracy |
<100ns from absolute time (when locked to GPS or PTP) |
| Analog/Logic Inputs |
|
| Number of channels |
4 x voltage inputs |
| Input Voltage Rating |
± 150V DC |
| Input impedance/channel |
> 1 MΩ |
| Relay Output |
|
| Number of Channels |
4 x galvanically isolated solid-state relays |
| Switch Rating |
0.1 ARMS, 300 VRMS(max) |
| Galvanic isolation |
1,000V |
| Accuracy & Bandwidth |
|
| Sampling rate |
5.0MHz (±100ns time synchronised) |
| Analogue bandwidth |
1.5MHz |
| Waveform storage rate |
5.0MHz |
| ADC resolution |
>16-bit |
| Overall accuracy |
<0.1% |
| Fast transient capturing |
≥ 500ns |
| Power frequency range |
DC, 40-70 Hz |
| Harmonic spectrum |
1-64th (harmonic and inter-harmonic) |
| Higher harmonic bands |
DC – 25kHz (200Hz bands) |
| Physical |
|
| Dimensions |
250 x 135 x 65 (L x W x H) |
| Material |
Aluminium plates, plastic collar |
| Weight |
1.9kg |
| Mounting Options |
Portable, DIN Rail, 19” Rack (3U) |
| Electrical connections |
Pluggable screw type (screw lock-down) |
| Rated range of operation and storage |
-20 ºC to 60 ºC |
| Operating humidity |
0-95% (non-condensing) |
| Communication |
|
| Ethernet |
2x gigabit ethernet |
| Fibre |
1 x 1000BASE-X SFP cage |
| Cellular modem |
1 x Battery backed industrial 4G module |
| Cellular antennae |
1 x MIMO antenna port |
| Wifi |
1 x industrial WiFi module |
| Wifi antennae |
1 x MIMO antenna port |
| Operating modes |
Access Point or Infrastructure Mode |
| USB expansion port |
1 x USB-C (USB2.0–480Mbit) (powered) |
| Power |
|
| Power consumption |
< 15W (25W max when charging) |
| AC supply voltage range |
90-280VAC (40-70Hz) |
| DC supply voltage range |
90-300VDC |
| Power over Ethernet |
IEEE 802.3at compliant |
| Onboard battery |
Li-ION cells (Replaceable) |
