¶ Site Assesment Reports
Site assessment reports cover all power quality parameters:
- Voltage Regulation
- Voltage Unbalance
- Total Harmonic Distortion (THD)
- Flicker
¶ Site Assessment - Contractual Levels
Site assessment against contractual levels recorded with the measurement point definition. PQ standard levels are used as fall back when no contractual levels recorded.
¶ Site Assessment - PQ Standard
Site assessment against the power quality standard of your account. Each parameter assessed is contextualised with potential factors that could influence the assessment.Typical duration is one month.
¶ Site Assessment Summary - PQ Standard
Management summary of the site assessment, without the contextual information. Typical duration is one to three months.
¶ Reports on individual PQ Standard
There reports are individule. The sute assesment are all of them combined.
¶ Voltage Events - PQ Standard
Voltage events classified according to the power quality standard of your account.
¶ Voltage Flicker Assessment - PQ Standard
Voltage flicker assessment against the power quality standard of your account. Typical duration is one to three months.
¶ Voltage Harmonic Assessment - PQ Standard
Voltage harmonic assessment against the power quality standard of your account. Typical duration is one to three months.
¶ Voltage Magnitude Assessment - PQ Standard
Voltage magnitude assessment against the power quality standard of your account. Typical duration is one to three months.
¶ Voltage THD Assessment - PQ Standard
Voltage THD assessment against the power quality standard of your account. Typical duration is one to three months.
¶ Voltage Unbalance Assessment - PQ Standard
Voltage unbalance assessment against the power quality standard of your account. Typical duration is one to three months.

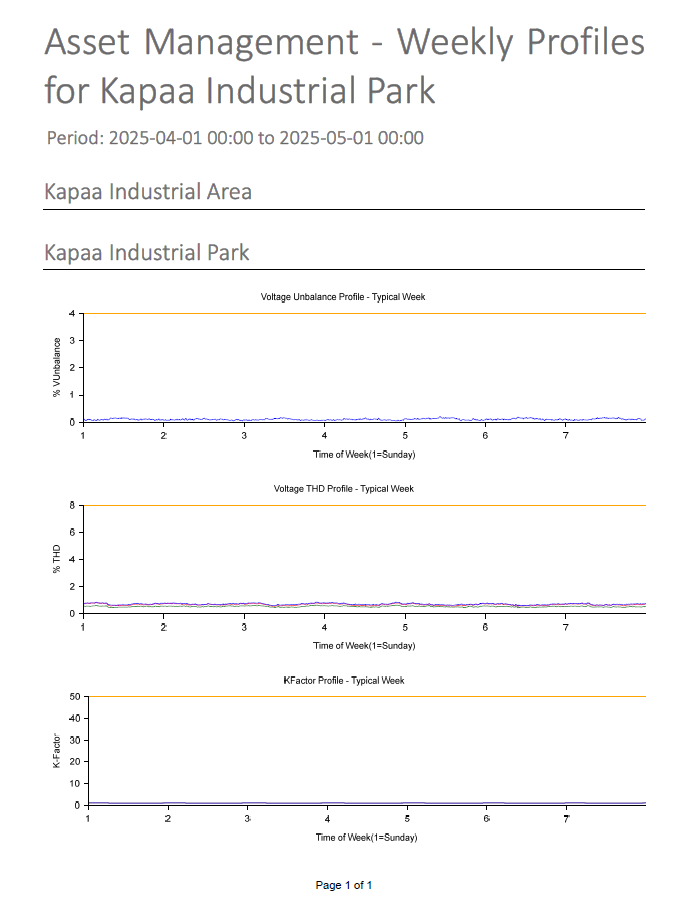

¶ Asset Management
This report compares specific PQ parameters levels against a specified limit per registered asset. Typical duration is one to three months.
Two types of assets can be registed and connected to a measurement point: Transformers and Motors.
Relevant PQ parameters are:
- Voltage Unbalance
- Voltage THD
- K-Factor (Transformers only)
- Apparent Power Total (Transformers only)
¶ Billing Verification
Bill verification
¶ Combined Consumption
Summate the consumption from multiple sites, indicating the combined maximum demand and consumption. Typical monthly report.
¶ Consumption
Single site consumption report, indicating maximum demand, trended and overall consumption. Typical monthly report.
¶ Data Availability Status
Status report on data availability for entire enterprise
¶ Enterprise PQ Summary
Summary report on PQ for selected measurement points
¶ Enterprise Voltage Events
List of voltage events for a selection of measurement points
¶ Facility
Report on the performance of a facility with regards to power consumption, frequency, and events
¶ Facility Losses
Report on the losses between the combined powers of two sets of measurement points
¶ Issue Summary
Report on the issues and their causes
¶ Key Performance Indicators (KPI)
Power Quality Key Performance Indicators of a selection of sites. Typical duration 6 months +
¶ KPI Benchmarking
Benchmarking of Power Quality Key Performance Indicators of a selection of sites. Typical duration 6 months +
¶ Non-Technical Losses
Compares the consumption measured at a summation point with uploaded billing data for all the individual clients to identify commercial losses.
¶ Power Factor
Relates daily power factor and load levels for multiple sites. Typical usage is a few days to a mont
¶ Power Factor Summary
Power Factor Managerial report over a selection of measurement points. Typical duration 6 months +
¶ Repair Status
Report on the status of repairs in the enterprise at the time of query
¶ Technical Losses
Application of Kirchhoff's Current Law to determine the technical losses in a node.
