The VECTO 3.4 is the latest version of the VECTO 3. A comprehensive list of upgrades can be found on CT Lab's website.
The VECTO 3 is a multifunction, waveform synchronised, Ed3.0 Class-A power quality analyser, recorder and measurement device, sampling at 1.5MHz with the ability to store 50kHz time synchronised waveforms.
The device is permanently GPS or PTP time synchronised to within <100ns from absolute time, and offers high accuracy and high-bandwidth analog inputs with programmable gain. It offers secure Gigabit bandwidth IP integration via Ethernet, Fiber, WiFi and 4G Cellular interfaces. The devices are powered from either AC, DC or POE-Plus sources and offers built-in battery support. VECTO devices can operate stand-alone or as part of a fleet of permanently connected devices managed by VECTO Grid OS, the big data hosting, visualisation, analysis & reporting software platform. Various value-adding software modules are available.
- Power Quality Instrument: IEC62586-1 – PQI-A-FI1-H
- Power Quality: IEC6100-4-30 ED 3.0 Class-A
- Harmonics: IEC61000-4-7 Class 1
- Flicker: IEC61000-4-15 Class F1
- PMU: IEEE C37-118 Class P&M
- Billing: IEC62053-22 Class 0.2S
VECTO 3.4 User Manual
VECTO 3.4 Data Sheet
VECTO 3.4 Quick Start Guide
The device comes equipped with a built-in GPS, Wi-Fi, cellular modem with antennae, ethernet cable, flash drive, flat screwdriver, connector blocks, 15m Coax extension cable and a GPS wall mounting bracket.
|

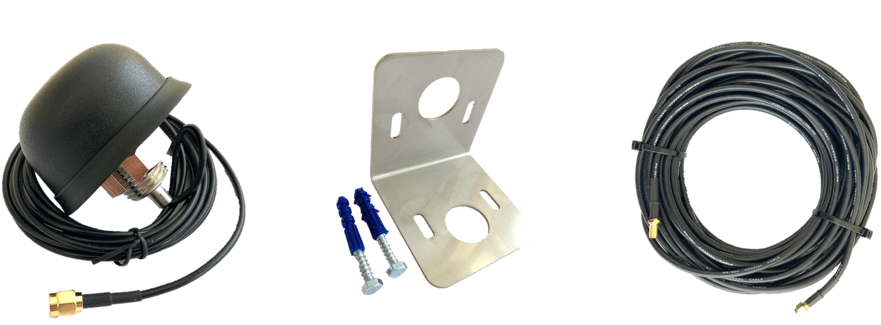

GPS Antennae, Mounting Bracket, and Coax Extension Cable
|
|
|

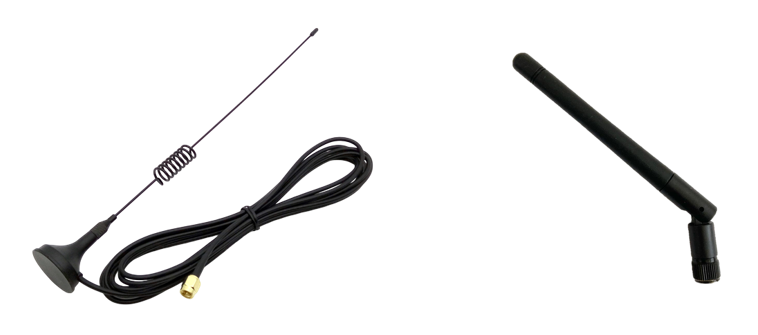

Cellular and Wi-Fi Antennae
|
|
|

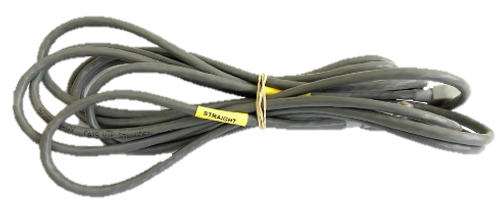

4m Ethernet Cable
|
|
|

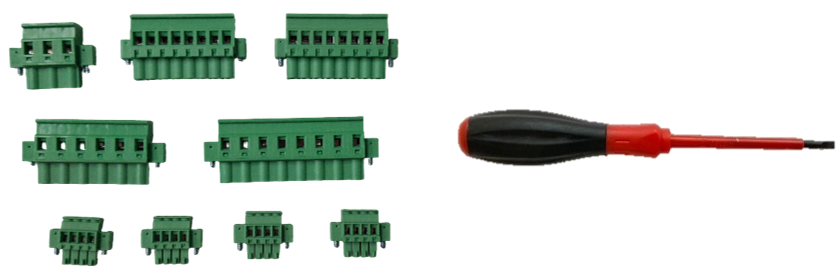

Connector Blocks and Screwdriver
|
|
Flash Drive
NB: Contains Meter Security Key and Manuals
|
|

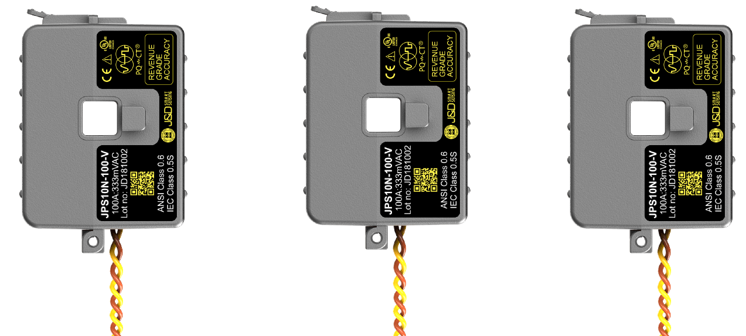

Split-Core Transducers
Optional on Order
|
|

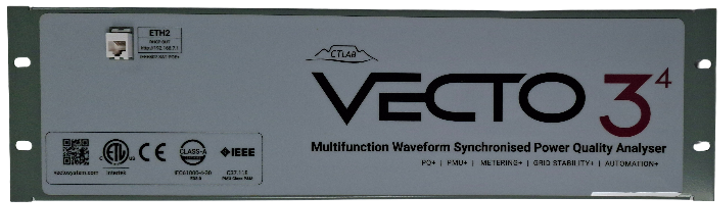

19" Rack Mount Plate
Optional on Order
|
|
|

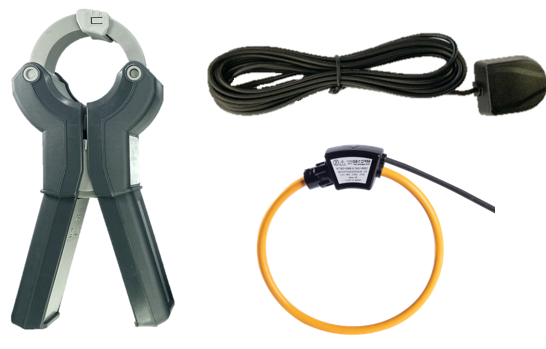

Other Optional Items
|
|
| Voltage Inputs |
|
| Number of channels |
4 x voltage inputs (3/4 Wire + 4th Diff) |
| Measurement input range |
0-600 VRMS (VLN), 0-1,000 VRMS (VLL), ± 800 VDC |
| Voltage measurement |
Single Phase, 3-Phase (Star, Delta), DC |
| Input impedance/channel |
> 1 MΩ |
| Current Inputs |
|
| Number of channels |
4 x galvanically isolated inputs |
| VA burden @5A |
< 125 mVA |
| Measurement input range |
0-8.0 ARMS |
| Max continuous current |
10.0 ARMS |
| 2 sec over-current withstand |
50 A |
| Galvanic isolation |
1,000 V |
| Current Sensor Input |
|
| Number of channels |
4 x differential low voltage inputs |
| Measurable input range |
±2.5 VRMS, ±3.6 VDC |
| Input impedance/channel |
>1 MΩ |
| Selectable input range |
2.5 V, 1.25 V, 625 mV, 313 mV |
| Power |
|
| Power consumption |
< 25 W |
| AC/DC supply voltage |
90-280 VAC (40-70Hz), 90-300 VDC |
| Power over Ethernet |
IEEE 802.3 at compliant |
| Onboard battery |
Li-ION (2,000 charge/discharge cycles) |
| Analog/Logic Inputs |
|
| Number of channels |
4 x Analog/Logic inputs |
| Input Voltage rating |
± 150 VDC |
| Resolution |
12-Bit |
| Relay Outputs |
|
| Number of channels |
4 x galvanically isolated solid-state relays |
| Switch rating |
0.1 ARMS, 300 VRMS (max) |
| Galvanic isolation |
1,000V |
| Accuracy & Bandwidth |
|
| Sampling Rate |
1.5 MHz (time synchronized) |
| Analogue Bandwidth |
500 kHz |
| Waveform Storage Rate |
1 kHz – 50 kHz (user configurable) |
| ADC Resolution |
> 16-bit |
| Overall Accuracy |
< 0.1% |
| Fast Transient Capturing |
≥ 20 μs |
| Power Frequency Range |
DC, 40-70 Hz, 400 Hz |
| Harmonic Spectrum |
1-64th (harmonic and inter-harmonic) |
| Higher Harmonic Bands |
DC – 25 kHz (200 Hz bands) |
| Physical |
|
| Construction |
Aluminium, 250 x 135 x 65 (L x W x H) |
| Weight |
1.9 kg |
| Mounting Options |
3U-19” Rack, Panel Mount, Portable Case |
| Electrical Connections |
Pluggable screw type (screw lock-down) |
| Operating Temperature |
-25℃ to 55℃ (ambient) |
| Storage Temperature |
-25℃ to 70℃ |
| Operating Humidity |
0-95% (non-condensing) |
| Communication |
|
| Ethernet |
2 x Gigabit Ethernet with PTP & POE support |
| Fibre |
1 x 1000BASE-X SFP cage |
| Cellular modem |
1 x Battery backed industrial 4G module |
| Cellular antennae |
1 x MIMO antenna port |
| Wifi |
1 x industrial WiFi module |
| Wifi antennae |
1 x MIMO antenna port |
| Operating modes |
Access Point or Infrastructure Mode |
| USB expansion port |
USB-C port – 480 Mbit (5V powered) |
| Clock |
|
| Precision time source |
Built-in GPS, PTP |
| Onboard fall-back time source |
Battery Backed Real Time Clock |
| On-Board RTC drift |
10 ppm (320 seconds per annum) |
| Other sources |
NTP |
| Overall accuracy |
<100ns from absolute time |
- 1.5 MHz sampling rate
- 500 kHz analogue bandwidth
- 50 kHz diagnostic waveform capturing
- GPS, IEEE 1588V2 (PTP) & NTP time synchronisation
- NVMe M.2 SSD data storage
- Battery-backed GPS w active antenna
- Battery-backed 4G cellular modem w MIMO antennae
- Battery-backed WiFi w MIMO antennae
- 2 x Gigabit Ethernet ports
- 1 x Gigabit SFP fibre port
- Lockable USB-C expansion port
- Li-Ion battery
- Universal AC/DC power supply
- IEEE 802.3 compliant POE+
- Fanless design

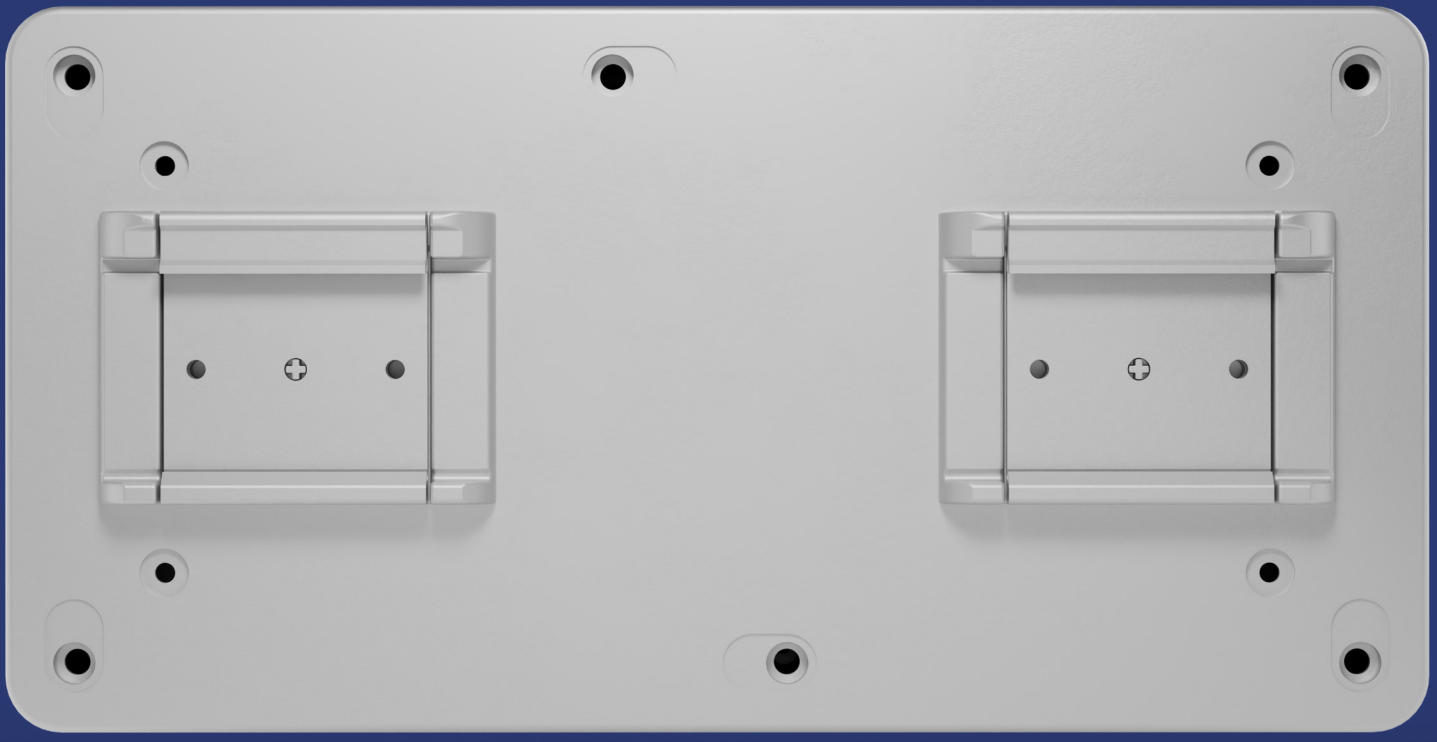

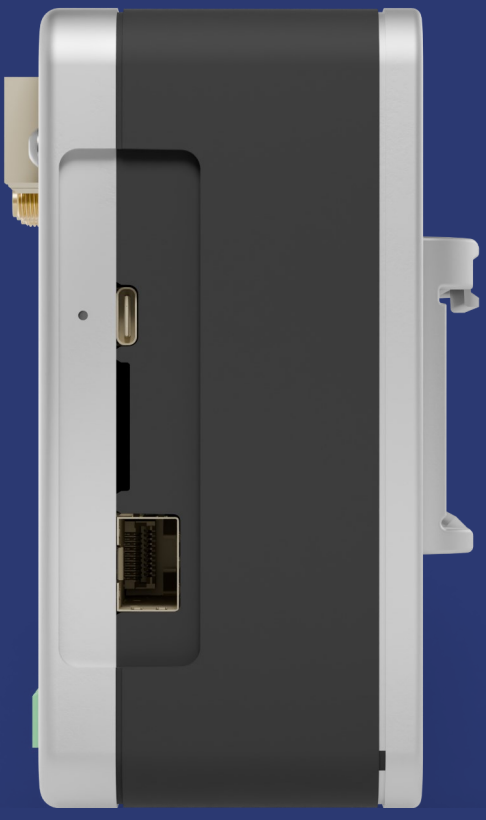

- Rugged aluminium enclosure with DIN rail mounts
- Comprehensive onboard device telemetry
- Linux operating system with comprehensive cyber-security support
- Encrypted communication with onboard open VPN client
- Web server with real-time viewer
- Field upgradeable
- Rich diagnostic event data streams with long pre- & post data
- Diagnostic waveform data sampled at fixed sampling rate
- XrossTrigger mechanism – (synchronous cross-triggering of multiple devices)
- Measures AC & DC parameters
- Offline synchrophasor recording
- Fast SCADA parameter update speed
- Supports 16.66 Hz, 50 Hz, 60 Hz & 400 Hz networks
- Harmonic powers & phase
- Prevailing phasors
- Prevailing harmonic magnitude ratio
- Higher harmonic bands (up to 25 kHz)
- Frequency lock on chopped voltage waveforms
- Calculate 3rd or 4th current from existing 2- or 3-current inputs
- Compensate harmonic amplitude & phase angle of external sensors
- Simultaneously record various time interval data streams

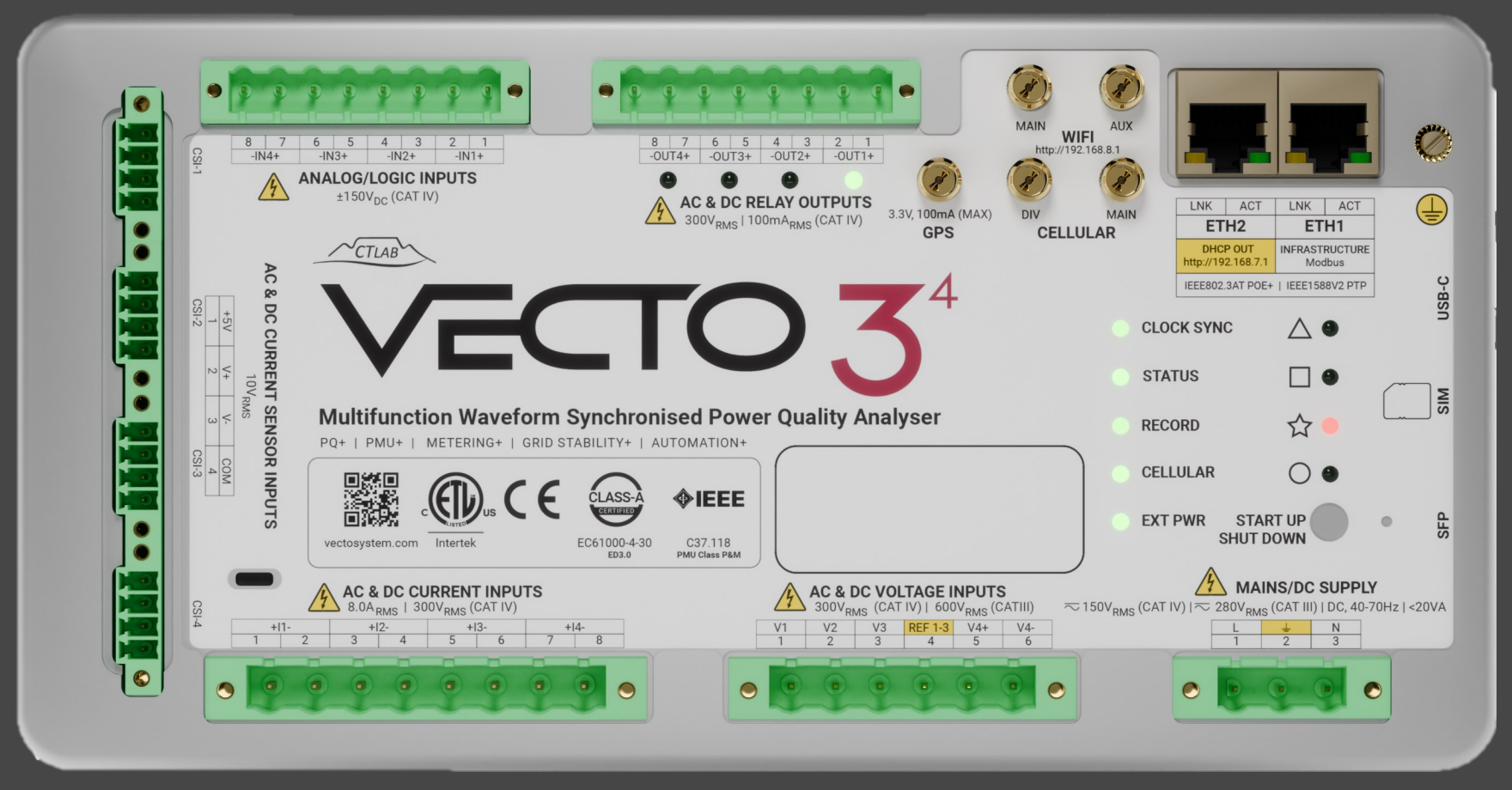

4 x High impedance voltage inputs with selectable measurement range
4 x Galvanically isolated current inputs
4 x Current sensor inputs with selectable measurement range (5V Powered)
4 x Analogue/logic event inputs
4 x Solid-state relay outputs w LED Indicators
1 x Universal AC/DC power supply input
2 x Gigabit Ethernet ports with POE & PTP support
1 x 1000BASE-X SFP cage
1 x MIMO WiFi antenna port
1 x MIMO cellular antenna port
1 x SIM slot
1 x Active GPS antenna port
1 x USB-C expansion port (lockable)
13 x LEDs
1 x Power on/off push button
1 x Safety earth connection point
1 x Kensington key slot
- PQI: IEC61000-4-30 ED3.0 Class-A
- PMU: IEEE C37-118 Class P&M
- oPMU: Oscillation phasor measurement
- Automation protocols supported
- Modbus
- DNP3
- IEC61850
- IEEE C37-118 – Simultaneous Class M & Class P (PMU Streaming)
- Billing features
- Imported
- Exported
- Net
- Month to date Modbus register
- Previous month Modbus register
