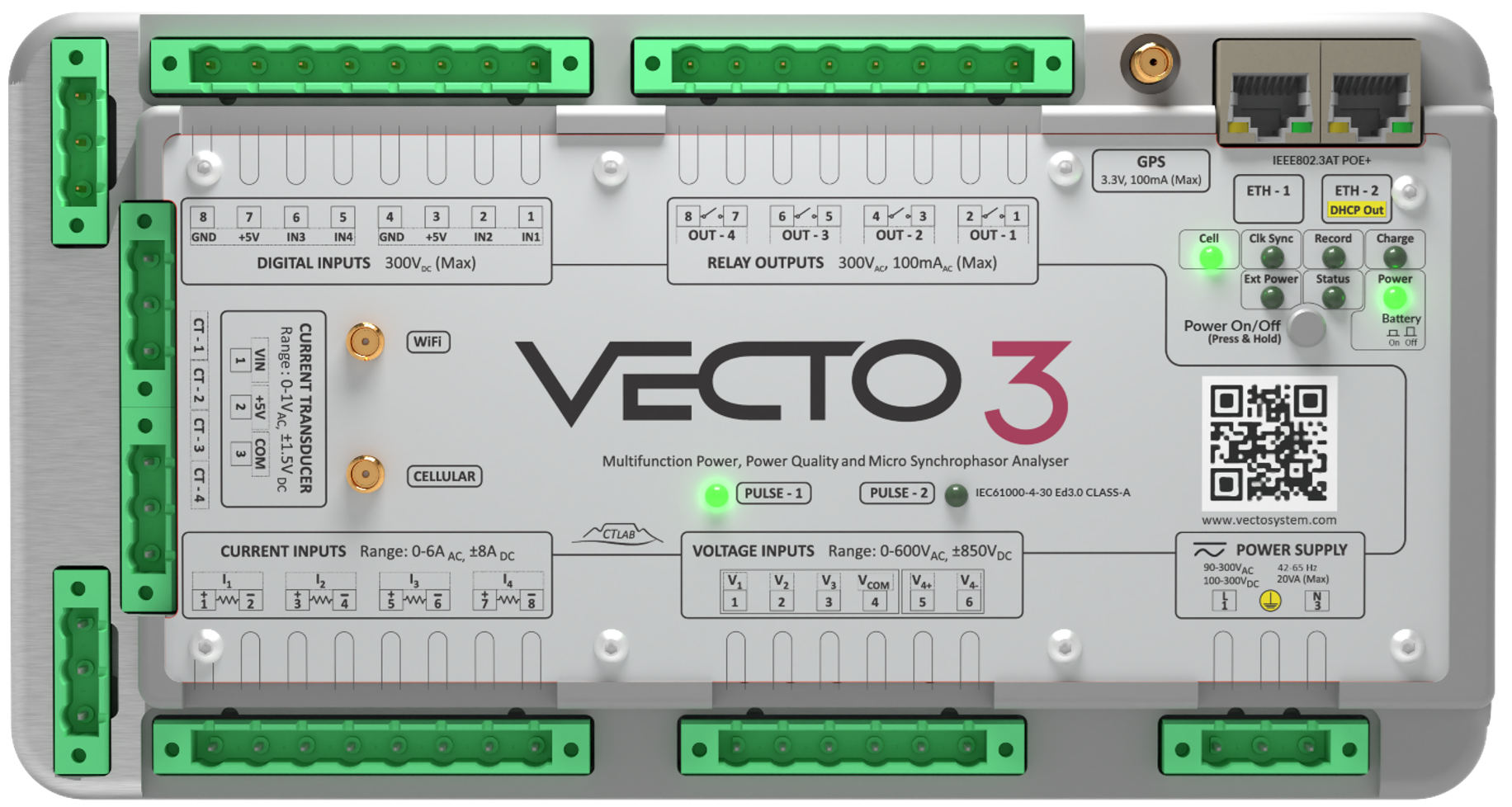

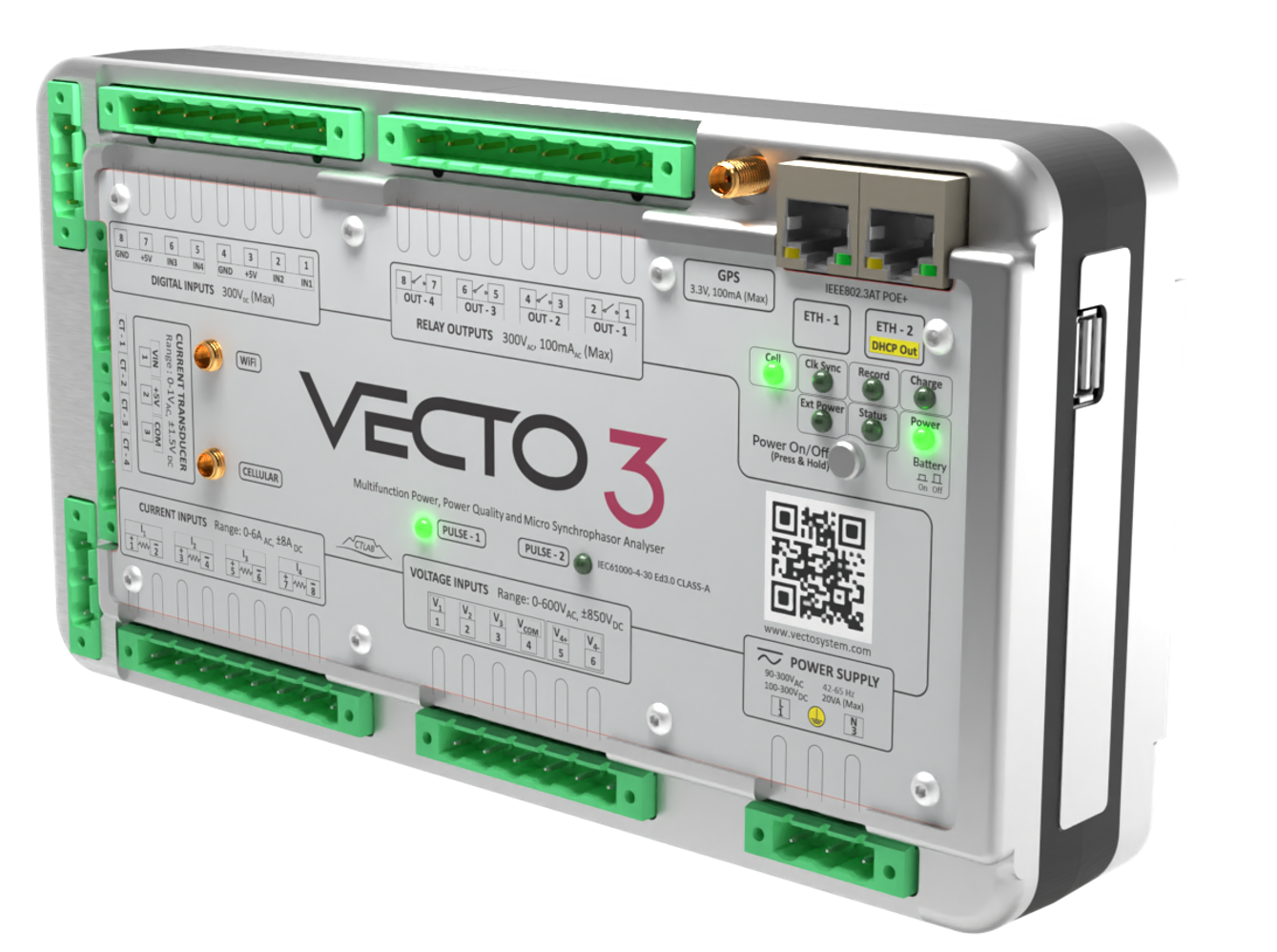

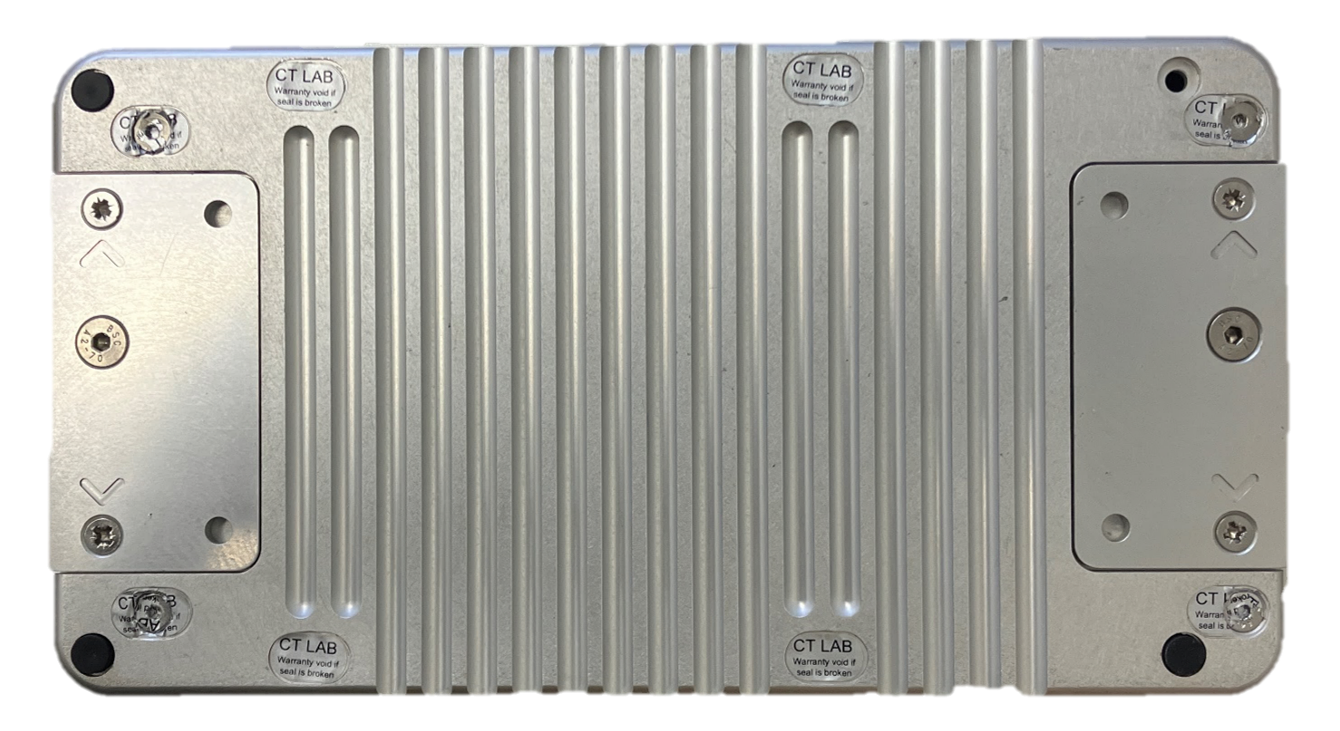

The VECTO 3 is a multifunction, waveform synchronised, Ed3.0 Class-A power quality analyser, recorder and measurement device, sampling at 1.5MHz with the ability to store 50kHz time synchronised waveforms.
The device is permanently GPS or PTP time synchronised to within <100ns from absolute time, and offers high accuracy and high-bandwidth analog inputs with programmable gain. It offers secure Gigabit bandwidth IP integration via Ethernet, Fiber, WiFi and 4G Cellular interfaces. The devices are powered from either AC, DC or POE-Plus sources and offers built-in battery support. VECTO devices can operate stand-alone or as part of a fleet of permanently connected devices managed by VECTO Grid OS, the big data hosting, visualisation, analysis & reporting software platform. Various value-adding software modules are available.
- Power Quality Instrument: IEC62586-1 – PQI-A-FI1-H
- Power Quality: IEC6100-4-30 ED 3.0 Class-A
- Harmonics: IEC61000-4-7 Class 1
- Flicker: IEC61000-4-15 Class F1
- PMU: IEEE C37-118 Class P&M
- Billing: IEC62053-22 Class 0.2S
VECTO 3 Datasheet
VECTO 3 Quick Start Guide
VECTO 3 User Manual
The device comes equipped with a built-in GPS, Wi-Fi, cellular modem with antennae, ethernet cable, flash drive, flat screwdriver, T10 Torx driver connector blocks, 15m Coax extension cable, and a GPS wall mounting bracket.
|
GPS Antennae, Mounting Bracket, and Coax Extension Cable
|
|
|
Cellular and Wi-Fi Antennae
|
|
|
4m Ethernet Cable
|
|
|
Connector Blocks and Screwdriver
|
|
Flash Drive
NB: Contains Meter Security Key and Manuals
|
|
Split-Core Transducers
Optional on Order
|
|
19" Rack Mount Plate
Optional on Order
|
|
|
Other Optional Items
|
|
| Voltage Inputs |
|
| Number of channels |
4 x differential voltage inputs (3/4 Wire + 4th Diff) |
| Measurement input range |
0-600 VAC, ±850 VDC |
| Voltage measurement |
Single Phase, 3-Phase (Star, Delta), DC |
| Input impedance/channel |
> 1 MΩ |
| Current Inputs |
|
| Number of channels |
4 x galvanically isolated inputs |
| VA burden @ 5 ARMS |
< 1 VA |
| Measurement input range |
0-6.0 ARMS, ±8 ADC |
| Max continuous current |
10.0 ARMS |
| 3 sec over-current withstand |
50 ARMS |
| Galvanic isolation |
1,000 V |
| Current Sensor Input |
|
| Number of channels |
4 x differential low voltage inputs |
| Measurable input range |
0-1.0 VAC, ±1.5 VDC |
| Input impedance/channel |
> 200 kΩ |
| Digital Inputs |
|
| Number of channels |
4 x galvanically isolated inputs |
| Max Voltage Input |
300 VDC |
| Digital Inputs |
|
| Number of channels |
4 x galvanically isolated inputs |
| Max Voltage Input |
300 VAC, 100 mAAC |
| Power |
|
| Power consumption (max) |
< 20 VA |
| AC/DC supply voltage |
90-300 VAC, 100-300 VDC |
| Supply Frequency |
DC, 42-69Hz |
| Power over Ethernet |
IEEE 802.3 compliant |
| Onboard battery |
LiFePO4(2,000 charge/discharge cycles) |
| Accuracy & Bandwidth |
|
| Sampling Rate |
1.5 MHz (time synchronized) |
| Synchronised data sampling rate |
500 kHz |
| ADC Resolution |
> 16-bit |
| Overall Accuracy |
< 0.1% |
| Fast Transient Capturing |
≥ 20 μs |
| Power Frequency Range |
DC, 40-60 Hz, 50-70 Hz |
| Harmonic & interharmonic bandwidth |
1-64th, 2-9kHz |
| Physical |
|
| Dimensions |
250 x 135 x 65 (L x W x H) |
| Electrical Isolation Class |
600 V Class II |
| Mounting Options |
DIN rail & wall mount |
| Communication |
|
| Security |
Permanent 128-bit encryption |
| Ethernet |
2 x Gigabit Ports |
| Cellular (Optional) |
Sierra Wireless HL series |
| Wifi |
802.11 a/b/g/n/ac |
| PTP Support |
IEEE1588 |
| POE Plus Support |
IEEE802.3at (30W) (48V) |
| Clock |
|
| Built-in GPS |
U-Blox LEA-6T |
| GPS clock sync accuracy |
±100ηs (from absolute time) |
| PTP clock sync accuracy |
±1μs (from absolute time) |
| NTP clock accuracy |
±1ms (from absolute time) |
| Built-in clock accuracy |
±1ppm (32 sec per annum) |
| Storage Capacity |
|
| Flash storage capacity |
8-Gbyte |
| Other |
|
| Pulsed LED’s |
2 x user defined |
| USB2.0 expansion port (powered) |
High speed (480Mbit) |
| Tricolour status LED’s |
7 x LED's |
- Revenue Grade Accuracy (Class 0.2)
- IEC61000-4-30 ED3.0 Power Quality (Class-A)
- Permanent ±100ns Clock Synchronisation
- Harmonic Linearization of External Sensors
- Current and Current Transducer Inputs
- 500kHz Sampling Rate
- LiFePO4
- Battery with >2,000 Cycles
- Rugged Enclosure
- DIN Rail and Wall Mount
- IP Based Communication (Encrypted)
- DHCP and Fixed IP addressing on Eth1 Port
- DHCP Server on Eth2 Port
- POE Plus Support on both ports (IEEE802.3at)
- Built-In WiFi – (802.11 a/b/g/n/ac)
- Built-In Sierra Wireless Modem (Optional)
- XrossTrigger® Mechanism
- Supported by VECTO Grid OS®
- Prevailing Harmonic Amplitude and Angle
- Separate Import and Export Power Profiles
- EN50160 & NRS048 Reporting
- Online Flicker Emission Recording
- 2kHz-9kHz Harmonics
